Here are the photos & the story for last weekend's build!

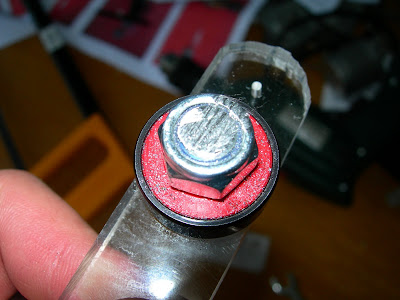

Bolt -> perspex -> washer -> bearing -> washer -> nut

I bought the wrong size bolts so I had to cut them down to size.

I had to clamp a #13 spanner to the table then use a screw driver to fasten it.

The first bearing arm done.

There were fine particles of metal powder form the hack saw that stuck to the bearing. :( they were all nice & oily, moved nicely when I bought them. Not any more.
BREAKAGES

The hack saw blade that came with the hack saw snapped in 4 places!

Bearing arm shattered! I think I had the clam on too tight whilst trying to cut the bolt shorter...

X stage perfectly parallel with 1 Y rail support mounted

Y sage on top of X stage, all working nicely after a 2nd attempt at the y stage rails... the first attempt was badly miss aliened. Take a look at everything working here:
http://iouzo.blogspot.com/2009/01/x-y-done.htmlThis weekend I will try get the Z stage done & then start making PCB's again.
